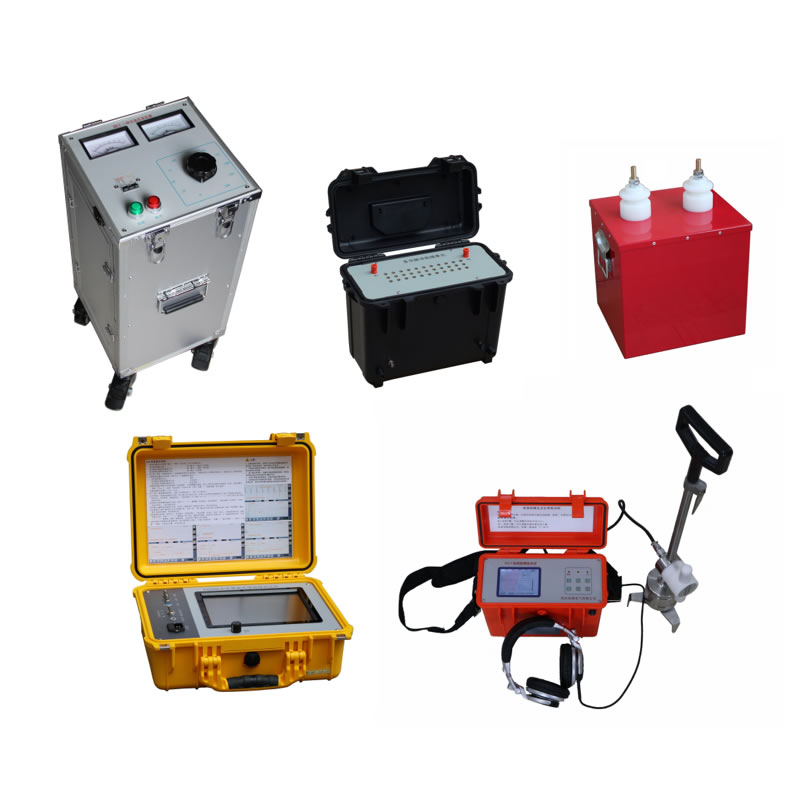

DE1 Portable Cable Fault Testing System Package

Components:

1. DE1 Integrated Portable High-Voltage Generator

2. DR1 Multiple Pulse Processing Unit

3. DMC 35 kV/4 μF/15 kA Lightweight Dry-Type Pulse Capacitor

4. D4000B Color Cable Fault Location TDR

5. DD3 Cable Fault Pinpointer

Uses:

Rapid location and pinpointing of short-circuit, low-resistance, open-circuit, high-resistance leakage, and flashover faults in low-, medium-, and high-voltage grade power cables.

Features:

● An integrated portable testing system, featuring light weight, durability, and ease for transportation;

● Built-in DC High-Voltage Output: 0–32 kV negative polarity, Maximum output current: 30 mA;

● Pulse capacitor: 35 kV/4 μF, energy: 2,450 J;

● Portable high-power pulse reflectometer, output voltage: 200 V, can be used independently at the test site;

● Noise-reduction cable fault Pinpointer;
