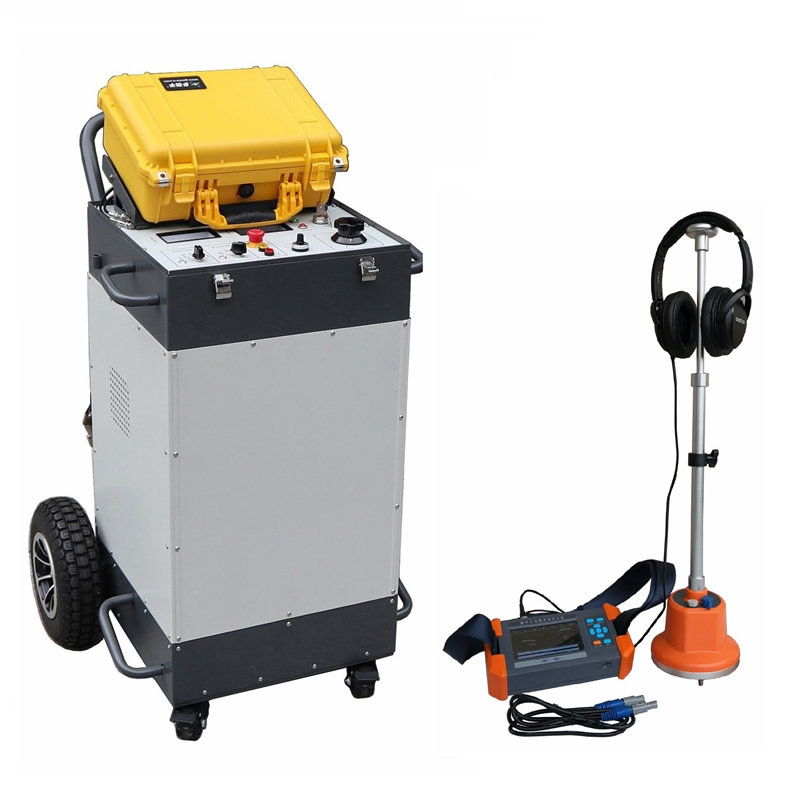

D43E Intelligent Cable Fault Location System Package

Composition:

1. D43E Intelligent Cable Fault Location System (High-Voltage Unit)

2. D4000B Color Intelligent Cable Fault Location TDR

3. DD4 Cable Fault Pinpointer

Uses:

Used for rapid location and pinpointing of short-circuit, low-resistance, open-circuit, high-resistance leakage, and flashover faults in power cables of low-, medium-, and high-voltage grades;

Features:

●Integrates a built-in DC high-voltage generator, high-voltage capacitor, inductive-type multiple-pulse arc reflection unit, and various signal acquisition modules into one unit;

● Electric control high-voltage switch technology eliminates the risk of misoperation caused by manual switches or wiring;

●Supports DC withstand voltage, burning-through, and fault breakdown tests with a maximum voltage of 40kV;

● 32 kV single-range pulse capacitor, with a maximum output of 2048 joules of impact energy;

● Portable high-power pulse reflectometer with an output voltage of 200 V, capable of standalone use at the test site;

● Ground voltage and ground resistance safety monitoring and protection;

● Intelligent high noise reduction cable fault pinpointer, which can be reliable even in environments with significant background noise;
